Carton Flow Rack in Sarasota, FL
Carton flow rack in Sarasota, FL organizes case picking for e-commerce, 3PL orders and manufacturing parts. We plan carton flow shelving around carton size, weight, pick frequency and replenishment quantities rather than simply adding more pick faces.
Lakewood Ranch light manufacturing, the SRQ / Tallevast Road industrial area and I-75 / US-301 last-mile distribution each need a different picking mix. Older land-constrained infill buildings often combine a compact case-pick area with taller reserve storage to make better use of the available space.
Carton flow shelving for daily picking

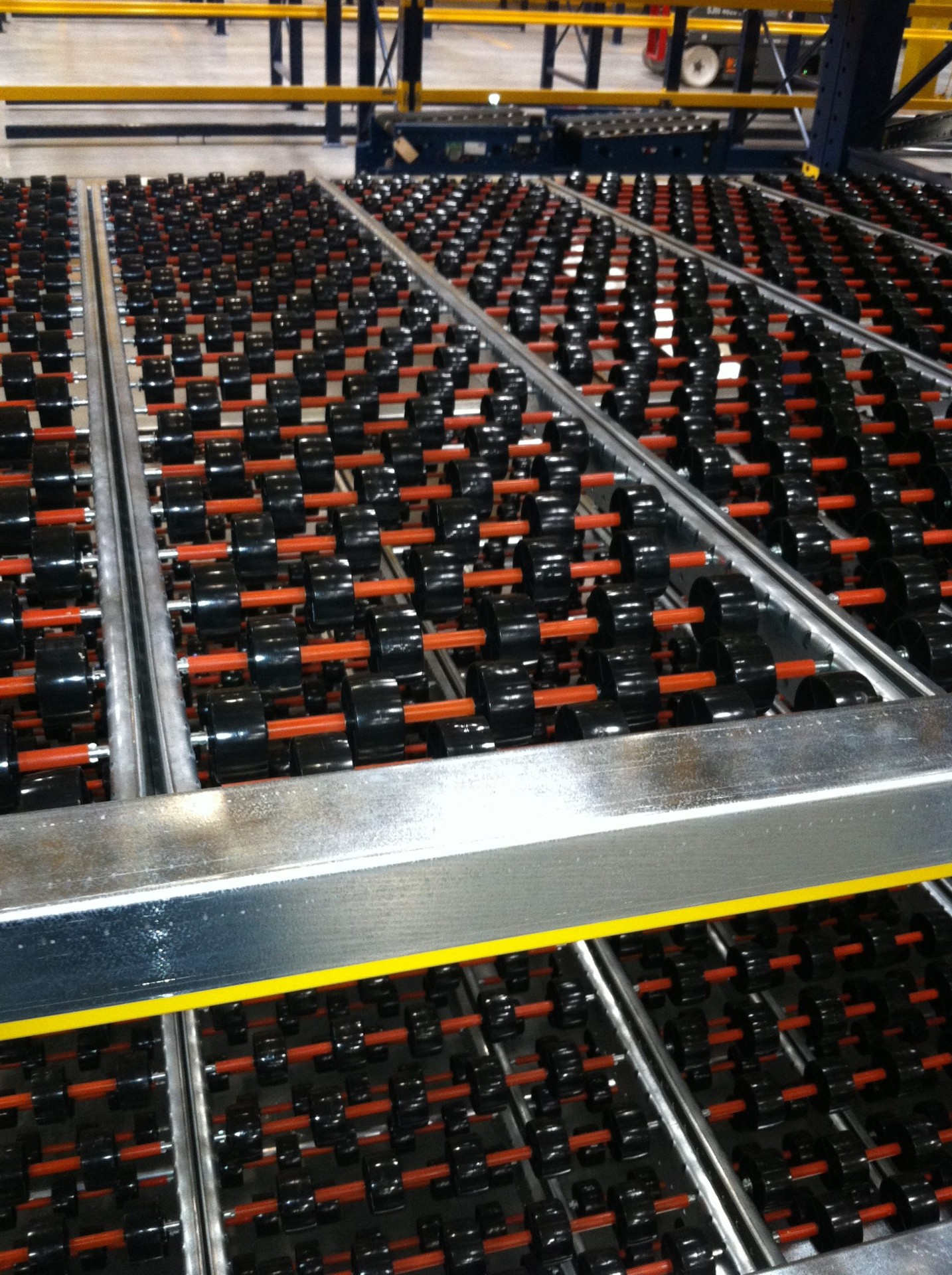

Cases travel on inclined tracks from the replenishment side to the picking face. Pickers take the leading carton, while replacement stock enters at the other end. This supports FIFO case rotation when replenishment follows the assigned lane and product dates.
We separate high-frequency lines from slower parts so the most active faces have enough lanes. A lane that is too narrow can pinch a carton; one that is too wide can waste the pick face. Measure cartons in their normal filled condition, including taped flaps or irregular bottoms.
Case loads, track layout and reserve pallets
Carton weight and underside shape influence track spacing, lane slope and control at the pick face. We choose the arrangement around the actual cases, totes or packages. Stock that does not travel consistently may need a different shelf or a separate picking location.
Reserve pallet storage can feed the flow area without putting a lift truck in the picker’s working route. Beam and frame sizing for the reserve section follows the heaviest pallet and level spacing. In the drawing, we keep replenishment access distinct from the order assembly area.
Sarasota e-commerce and manufacturing pick areas
Lakewood Ranch buildings with 24–32 ft clear heights can support reserve levels alongside a case-pick zone. At Tallevast Road, 15th Street East and University Parkway near SRQ, the job may instead require shorter runs that leave room for parts assembly and outbound staging.
Heat and humidity in non-air-conditioned space make carton behavior and finish selection worth discussing. Older infill footprints reward a picking layout that reduces cross traffic rather than one that fills every available wall. We compare SKU counts, daily turns and replenishment routes before setting the lane plan.
Draw the pick module before buying tracks
Send carton dimensions, filled weights, quantities by SKU, order mix and replenishment method. Our free CAD layout shows pick faces, reserve locations, working routes and staging. The itemized quote identifies the new rack and flow parts selected for those loads.
Work phases should preserve the picking lines that must remain active. We plan installation using experienced installation crews we schedule and manage, with the agreed layout available before work begins. A warehouse move is also a chance to reassign pick faces around the new receiving route.
